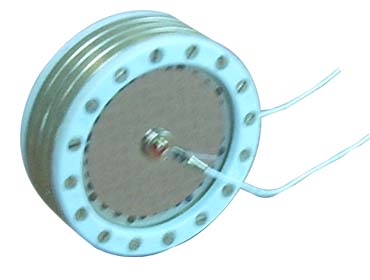

Item name: Condenser microphone capsule
Model:MAC102
Technical Data:
Element: Ф34 Pressure Gradient Transducer
Pattern: Cardioid/Omin/Figure 8
Frequency Response: 20Hz-20kHz
Sensitivity : -36dB±2dB (0dB=1V/Pa at 1kHz)
Output Impedance: 200Ω±30% (at 1kHz)
Loading Impedance: ≥1000Ω
Self Noise: 15dB A-Weighted
Max Input SPL: 130dB (at1kHz≤1%T.H.D) 140dB (with-10dB)
S/N Ratio: 79dB
Condenser: 54±4PF
Net Weight: 40g
Body Dimensions: Ф34x12.4mm |
|
|
|
|
